Anderson SBS75X AMP #10/12 Brown Battery Connector x1no.
Anderson SBS75X AMP #10/12 Brown Battery Connector x1no.

Anderson SBS75X AMP #10/12 Brown Battery Connector x1no.

x1 No. Genuine Anderson SBS75X amp Connector – Brown Part Number: SBS75XBRN-BK The Anderson SB Range of connectors provide cost-effective reliability, design flexibility and mistake-proof capability for your products’ manufacture, installation and maintenance. The housings are interchangeable and genderless interconnects (turn one housing 180 degrees to connect to the other).  Insert contacts into housings and plug together for a clever, simple and low-cost solution to power interconnection. Colour coded to prevent cross connection – will only mate to the same colour housing. Ideal for use in Wheelchairs, UPS Systems, Telecommunications, Electric Vehicles, Chargers, Power Electronics and much more. Often used on Electric Pallet Trucks with lithium batteries Kit contains: x1No. SBS75X Brown Interlocking Connector Housing x2No. Terminals (#10/12) (2.5/6mm2) Polycarbonate housings feature 4 auxiliary and 2 primary positions all finger proof. Genderless design mates with itself, or the PCB connector. Mechanical keys are colour coded. The patented SBS® connector family is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits. This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening. Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS®75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. All contact positions are rated for circuit interruption (hot plugging). Touch Safe Interface can safely be used in through panel applications and minimises potential contact with live circuits per IEC 60950 Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SKU: WH1625
Availability: 15 In Stock
£20.15
£20.15
Subtotal: £20.15
Description

x1 No. Genuine Anderson SBS75X amp Connector – Brown

Part Number: SBS75XBRN-BK

The Anderson SB Range of connectors provide cost-effective reliability, design flexibility and mistake-proof capability for your products’ manufacture, installation and maintenance.

The housings are interchangeable and genderless interconnects (turn one housing 180 degrees to connect to the other).  Insert contacts into housings and plug together for a clever, simple and low-cost solution to power interconnection. Colour coded to prevent cross connection – will only mate to the same colour housing.

Ideal for use in Wheelchairs, UPS Systems, Telecommunications, Electric Vehicles, Chargers, Power Electronics and much more.

Often used on Electric Pallet Trucks with lithium batteries

Kit contains:

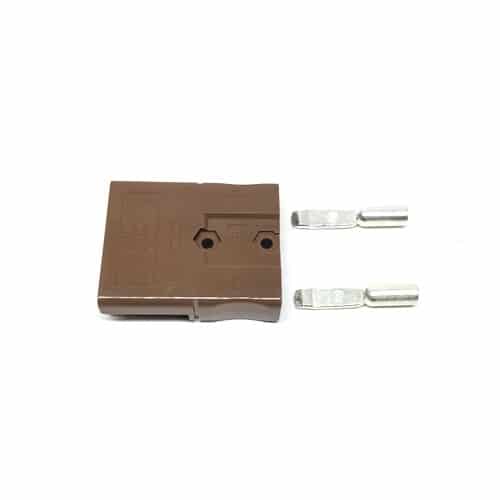

  • x1No. SBS75X Brown Interlocking Connector Housing
  • x2No. Terminals (#10/12) (2.5/6mm2)
  • Polycarbonate housings feature 4 auxiliary and 2 primary positions all finger proof. Genderless design mates with itself, or the PCB connector. Mechanical keys are colour coded.
  • The patented SBS® connector family is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits.
  • This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening.
  • Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps.
  • The SBS®75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps.
  • All contact positions are rated for circuit interruption (hot plugging).
  • Touch Safe Interface can safely be used in through panel applications and minimises potential contact with live circuits per IEC 60950
  • Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
  • Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
