x1 Genuine UMA SAE3160 160amp Connector – RED – 24 volt Used on BT Rolatruc forklifts & powered pallet trucks SAE3160: The three pole battery connector is designed to be used where connection between the battery charger and the vehicle motor control system must be avoided. A pair of three pole connectors is fitted to the vehicle. One is fixed permanently, the other being used as a bridge key to complete the battery/motor circuit. When this is removed and a standard two pole SAE 160 connector linked to the charger is inserted, the motor control system is automatically isolated from the charging process. Kit contains: x1No. SAE3160 RED Interlocking Connector housingx3No. Silver plated copper terminals (50 sq mm  – crimp or solder) Current:  160 amps  Voltage: 150volt Approx Plug DimensionsW100mm x L92mm x D26mmTerminals  for cable size:50 sq mm
SKU: WH1110
Availability: 7 In Stock
£45.00
£45.00
Subtotal: £45.00
Description

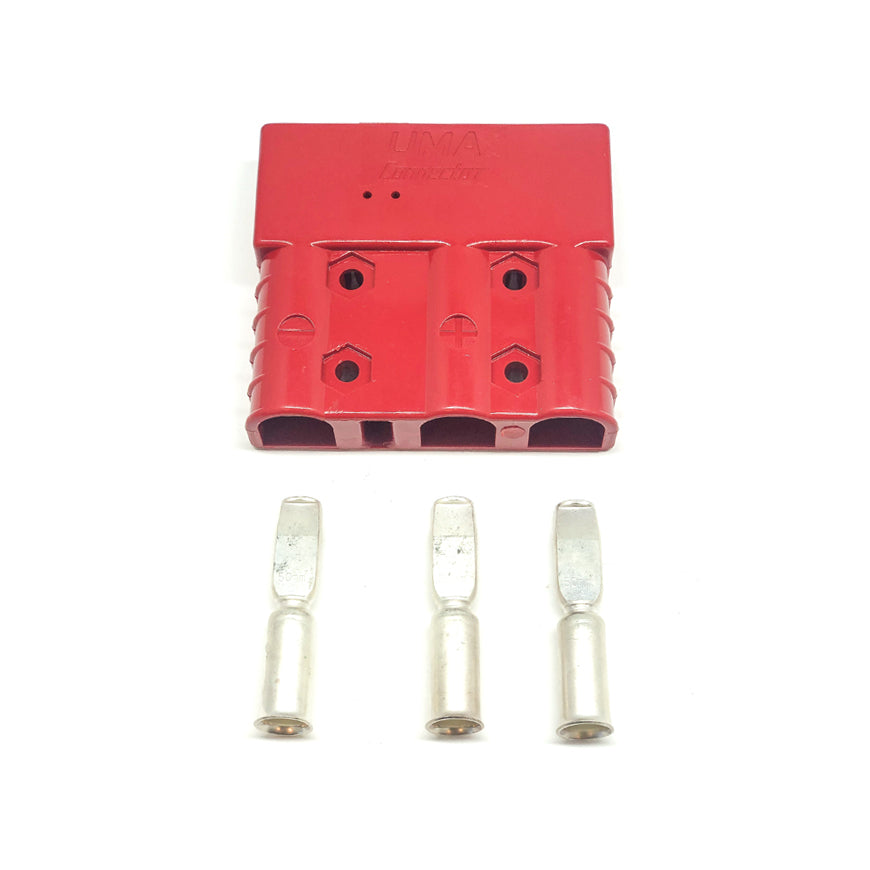

x1 Genuine UMA SAE3160 160amp Connector – RED – 24 volt

Used on BT Rolatruc forklifts & powered pallet trucks

SAE3160: The three pole battery connector is designed to be used where connection between the battery charger and the vehicle motor control system must be avoided. A pair of three pole connectors is fitted to the vehicle. One is fixed permanently, the other being used as a bridge key to complete the battery/motor circuit. When this is removed and a standard two pole SAE 160 connector linked to the charger is inserted, the motor control system is automatically isolated from the charging process.

Kit contains:

x1No. SAE3160 RED Interlocking Connector housing
x3No. Silver plated copper terminals (50 sq mm  – crimp or solder)

Current:

160 amps
Voltage:
150volt
Approx Plug Dimensions
W100mm x L92mm x D26mmTerminals  for cable size:
50 sq mm
