Jungheinrich/MIC AM22/TM22/AM2200 D170x45mm Black Nylon steer wheel

D170x45mm (60mm hub width) Black Nylon Steer Wheel Complete With Bearings – D20mm Bore For Jungheinrich/ MiC AM2200/ AM22/ TM22Part Number: 50305905, 50469250 Also suitable for the following Jungheinrich/ MiC models: AM 2200, AMXE 1000, AM 2000, GALVINOX AM 2200, AMXE 1000, TMX 1000, TMXE-10, AM G20, AMX 1 Suitable for fitting to a hand pallet/ pump truck, capacity up to max. of 2200kg. ie: 1100kg per wheel of a uniformally distributed load used in normal dry warehouse applications. Dimensions:(D) Diameter: 170mm(AX)Bore size: 20mm(x2no. metal “2RS” bearings included)(W) Wheel Width: 45mm(D-Rim) Rim Diameter: N/A(HL)Hub Length: 60mm(CL) Clamping Length: 54mmWheel Material: Black NylonHub Material: Black NylonLoad Rating: 1100kg each (For use on 2200kg capacity pallet trucks)
SKU: WH2266
Availability: 18 In Stock
£27.00
£27.00
Subtotal: £27.00

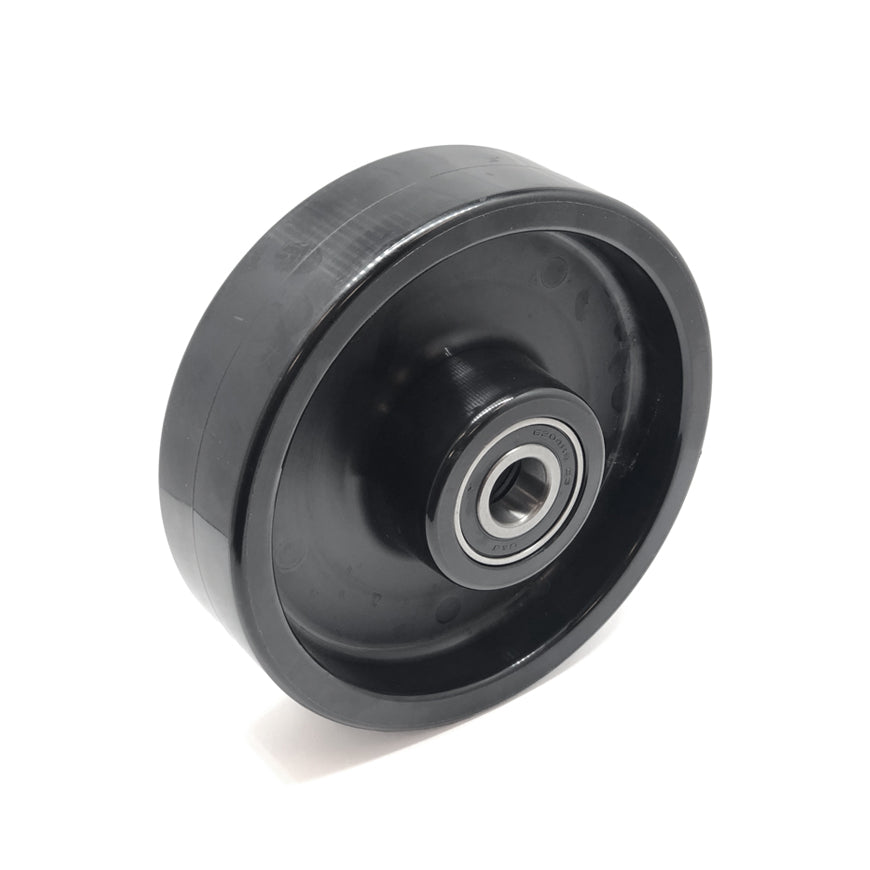

D170x45mm (60mm hub width) Black Nylon Steer Wheel Complete With Bearings – D20mm Bore

For Jungheinrich/ MiC AM2200/ AM22/ TM22
Part Number: 50305905, 50469250

Also suitable for the following Jungheinrich/ MiC models: AM 2200, AMXE 1000, AM 2000, GALVINOX AM 2200, AMXE 1000, TMX 1000, TMXE-10, AM G20, AMX 1

Suitable for fitting to a hand pallet/ pump truck, capacity up to max. of 2200kg. ie: 1100kg per wheel of a uniformally distributed load used in normal dry warehouse applications.

Dimensions:
(D) Diameter: 170mm
(AX)Bore size: 20mm(x2no. metal “2RS” bearings included)
(W) Wheel Width: 45mm
(D-Rim) Rim Diameter: N/A
(HL)Hub Length: 60mm
(CL) Clamping Length: 54mm
Wheel Material: Black Nylon
Hub Material: Black Nylon
Load Rating: 1100kg each (For use on 2200kg capacity pallet trucks)
